Lemar Commercial Complex — Plot 8
Full structural shop-drawing package for a 15,000 m² commercial complex, modeled in Revit and coordinated in real time through Autodesk Construction Cloud.
2025–2026
Saudi Arabia
BIM / Structural Shop Drawings
Delivered
A 15,000 m² commercial complex for which I produced the structural shop-drawing package end to end in Autodesk Revit — from the ground raft foundation up through the basement framing and vertical circulation.
The workflow was cloud-native: the federated model lived on Autodesk Construction Cloud (ACC), so detailing, reinforcement scheduling and revisions stayed coordinated with the wider multidisciplinary team in real time. Reinforcement was modeled in 3D, not just drafted, which let the sheets, bar schedules and quantity take-offs come straight from one source of truth.
Deliverables included the ground raft reinforcement layout and sections, basement-floor beam details, section reinforcement details, and stair reinforcement from basement B01 to ground level — all to the consultant standard (Zuhair Fayez Partnership) with full bill of quantities (BOQ).
Drawing sheets

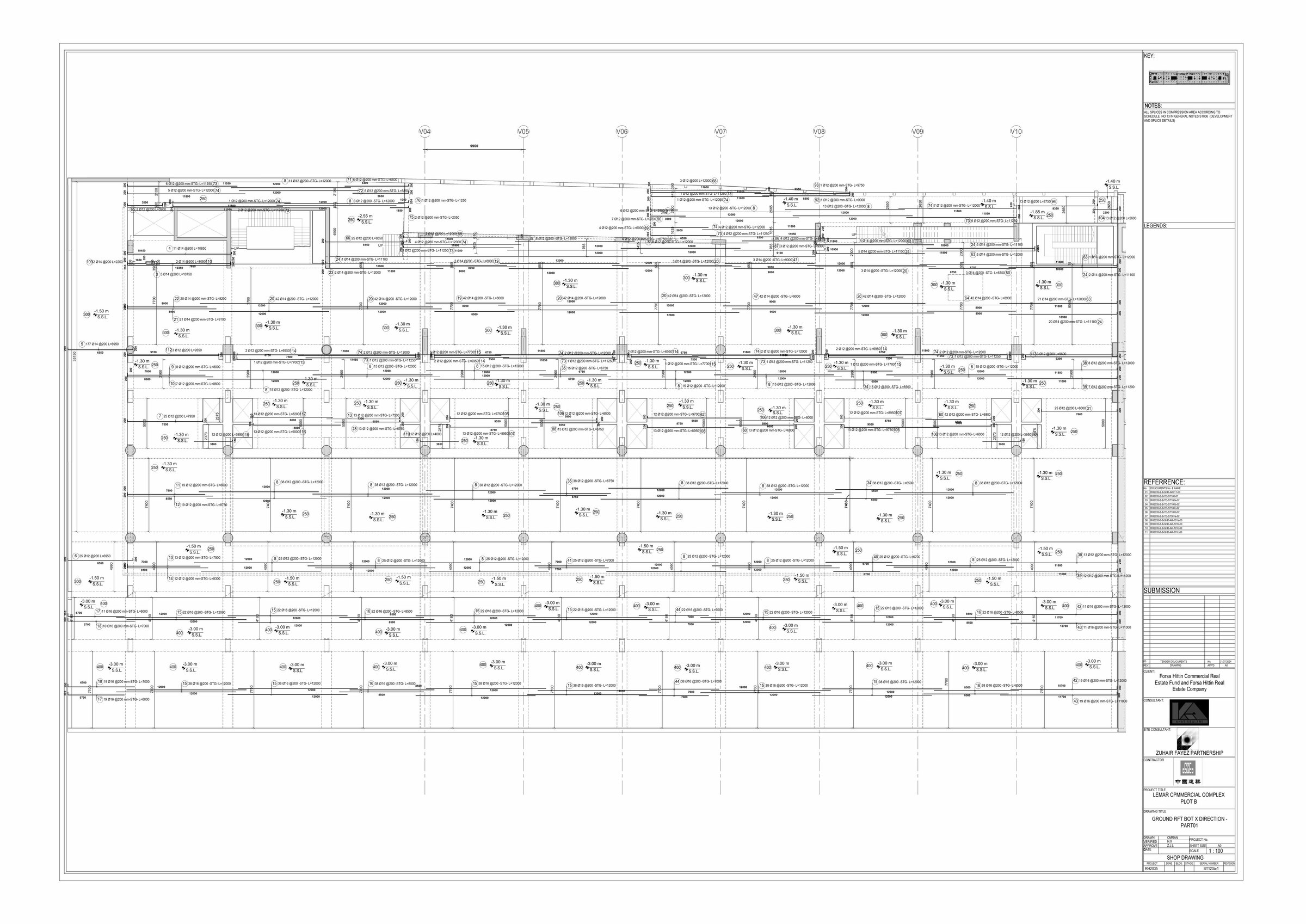

Ground Raft — Reinforcement Layout
Ground raft foundation reinforcement plan with bar marks and partitions.

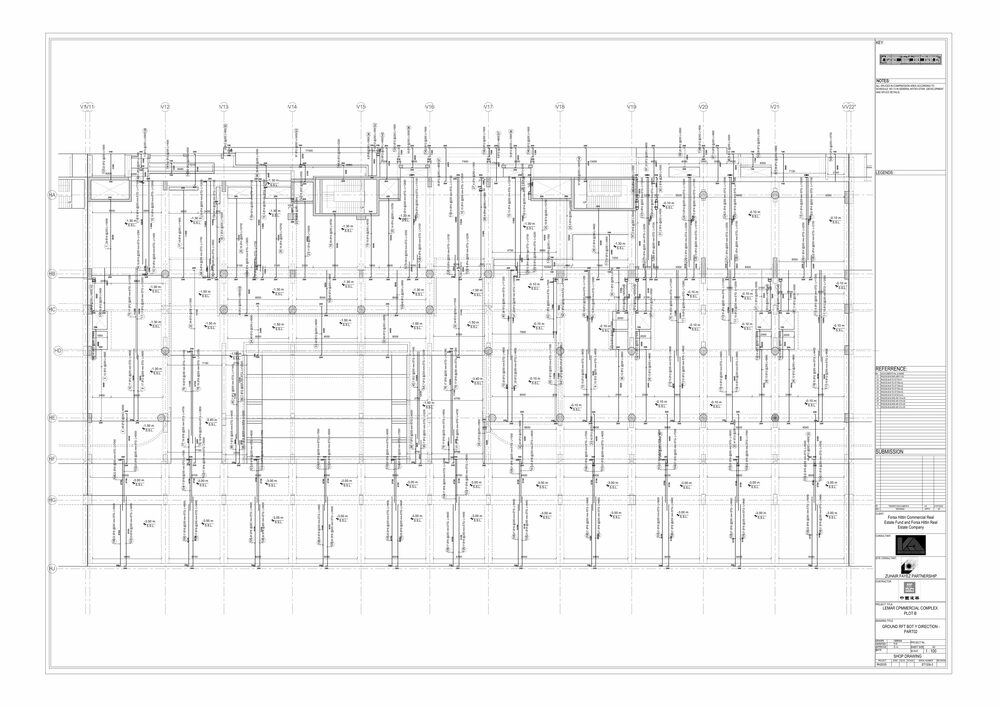

Ground Raft — Reinforcement (Sheet 2)
Continuation of the raft reinforcement layout and detailing.
Section Reinforcement Details
Cross-sections through raft and walls with top/bottom bars and dowels.

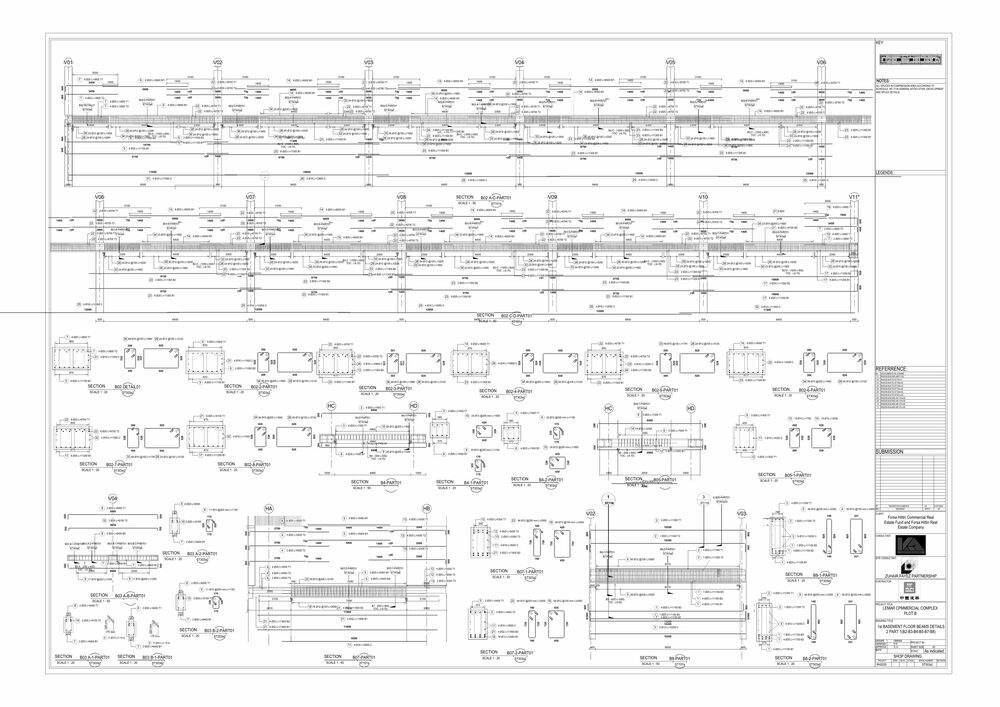

1st Basement Floor — Beam Details
Beam reinforcement details and sections for the first basement floor.
Stairs — B01 to Ground (Reinforcement)
Stair reinforcement layout and sections from basement B01 to ground level.
